8.2. Solved Examples: Tension and Compression

Tension questions with multiple cables (strings, ropes) involved. Solved example

The system in the picture is used to suspend a 10 kg object. Find the tensions in the ropes.

A 10 kg box hangs from three ropes. T₁ is at 30° from the ceiling, T₂ at 60°, and T₃ points straight downward.

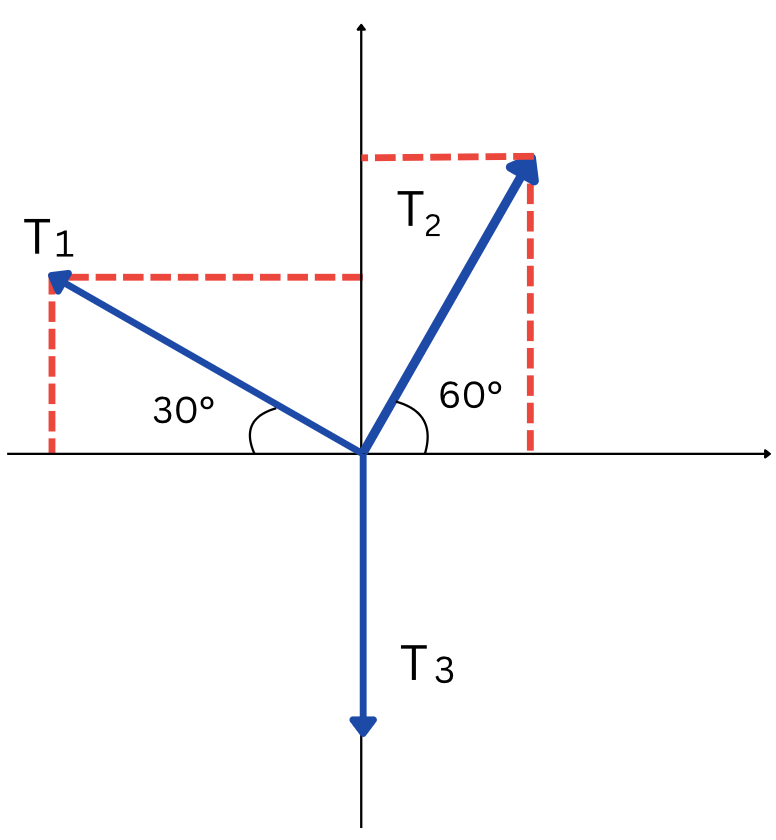

Free-body diagram of a suspended object. T₁ is 30° from the ceiling, T₂ is 60°, and T₃ points straight downward.
Figure 8.4. Solving for tension in multiple cables (ropes, strings) situation; FBD

We once again imagine that we cut the ropes and replace their effect by the respective forces of tension.

The FBD for the system is represented in figure 8.4 b). The tension in cable 3, [latex]T_3[/latex], will be equal to the weight of the hanging load:

[latex]T_3 = F_g = m \hspace{.2cm} \text × \hspace{.2cm}g = 10 \hspace{.2cm} \text × \hspace{.2cm}9.8 = 98 \hspace{.2cm} \text N[/latex]

To solve the system and find the other two tensions ([latex]T_1[/latex] and [latex]T_2[/latex]), we can organize the calculations in a table (presented below). The table is used to resolve all forces on the x and y axes, so that we can express the net force on the x axis, respectively on the y axis. Since the system is in equilibrium on these axes, both net forces will be zero.

Vector X-Components Y-Components
[latex]T_1[/latex] [latex]-T_1 \hspace {.2cm} \text {cos} \hspace {.2cm} 30^ \circ[/latex] [latex]T_1 \hspace {.2cm} \text {sin} \hspace {.2cm} 30^ \circ[/latex]
[latex]T_2[/latex] [latex]T_2 \hspace {.2cm} \text {cos} \hspace {.2cm} 60^ \circ[/latex] [latex]T_2 \hspace {.2cm} \text {sin} \hspace {.2cm} 60^ \circ[/latex]
[latex]T_3[/latex] [latex]0[/latex] [latex]- \hspace {.2cm} 98[/latex]
Total [latex]-T_1 \cos 30^\circ + T_2 \cos 60^\circ[/latex] [latex]T_1 \sin 30^\circ + T_2 \sin 60^\circ - 98[/latex]
Table 8.1 Components of Tensions

Conditions for Equilibrium

Since the system is in equilibrium on both axes:

[latex]F_{\text{net},x} = 0; \quad -T_1 \cos 30^\circ + T_2 \cos 60^\circ = 0 \quad (1)[/latex]

[latex]F_{\text{net},y} = 0; \quad T_1 \sin 30^\circ + T_2 \sin 60^\circ - 98 = 0 \quad (2)[/latex]

Solving the system of two equations with two variables results in:

[latex]T_1 = 49 \hspace{.2cm} \text N,\hspace{.2cm} T_2 = 85 \hspace{.2cm} \text N[/latex]

Tension and compression question. Example solved

A 200 N box hangs from a rope at a 45° angle with a pole. A support beam below forms a 30° angle for compression.

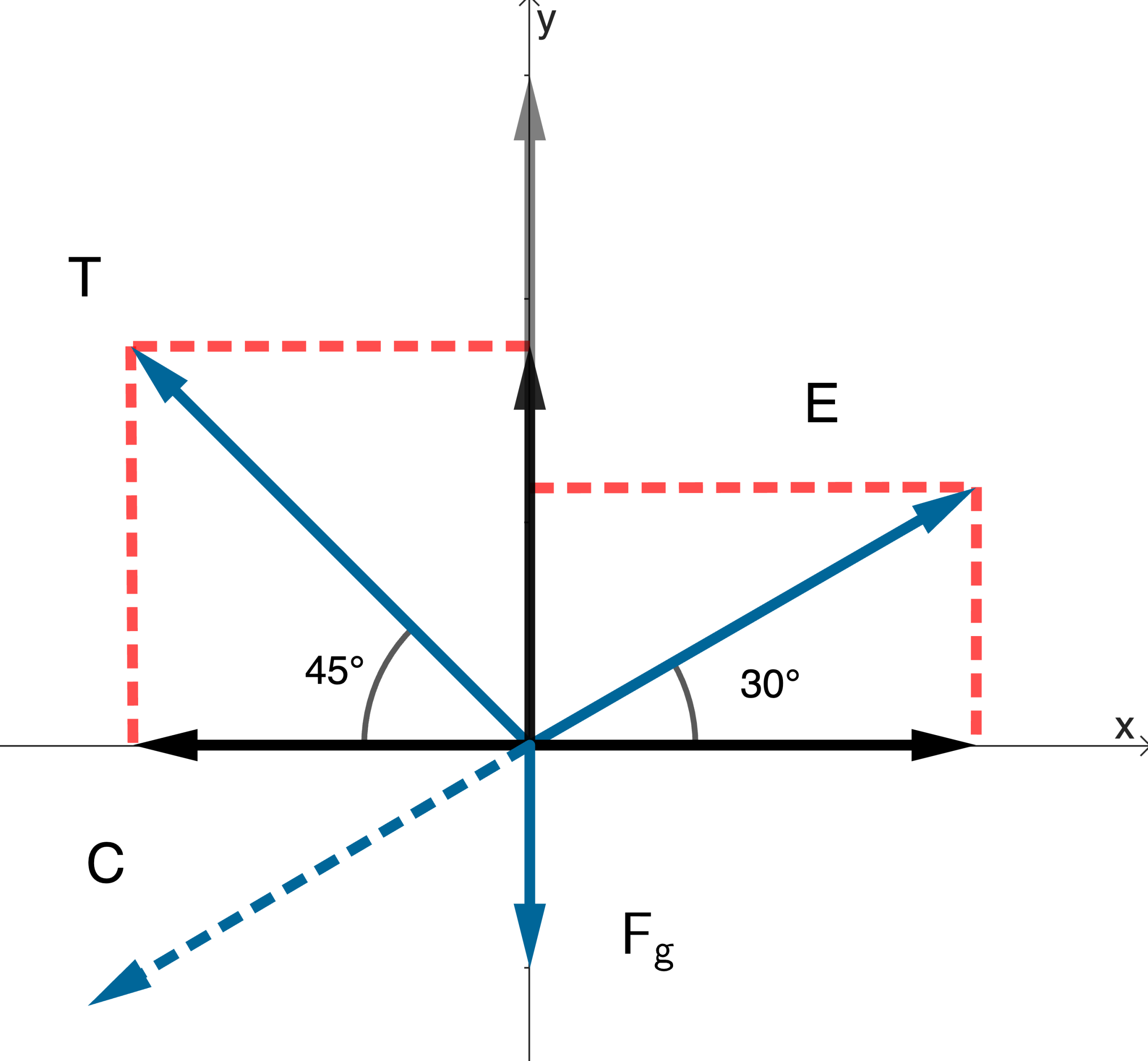

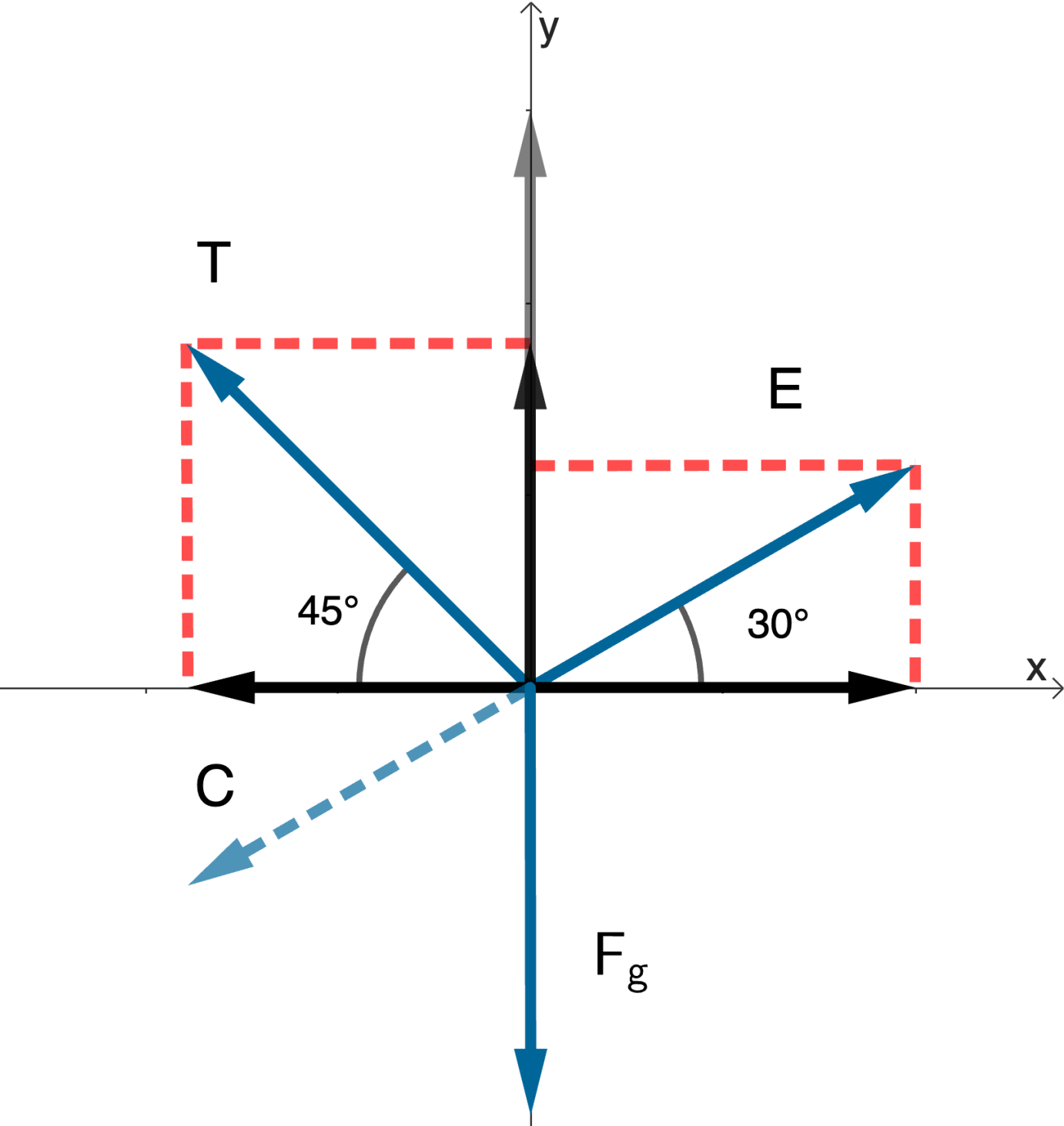

Force diagram on an x-y grid showing T at 45°, C leftward, E at 30°, and downward Fg. Dotted lines show vector components.
Figure 8.5. Solving for Tension and compression

The metallic bar in the figure is being pressed, thus developing a compression in the bar. The bar reacts with a force that we call the equilibrant force, denoted by [latex]E[/latex] (it is the force that produces the equilibrium in the system).The equilibrant force is equal in magnitude and opposite in direction with compression, denoted by [latex]C[/latex].

Similar to the previous question, we can organize the calculations in a table (presented below). The table is used to resolve all forces on the x and y axes, so that we can express the net force on the x axis, respectively on the y axis.

Since the system is in equilibrium on these axes, both net forces will be zero.

Vector X-Components Y-Components
[latex]T[/latex] [latex]- T \hspace{.2cm} \text {cos} \hspace{.2cm}45°[/latex] [latex]T \hspace{.2cm} \text {sin} \hspace{.2cm}45°[/latex]
[latex]E[/latex] [latex]E \hspace{.2cm} \text {cos} \hspace{.2cm}30°[/latex] [latex]E \sin 30^\circ[/latex]
[latex]F_g[/latex] [latex]0[/latex] [latex]- \hspace{.2cm}200[/latex]
Total [latex]-T \cos 45^\circ + E \cos 30^\circ[/latex] [latex]T \sin 45^\circ + E \sin 30^\circ - 200[/latex]
Table 8.2 Components of Forces

Conditions for equilibrium:

[latex]F_{\text{net},x} = 0; \quad -T \cos 45^\circ + E \cos 30^\circ = 0 \quad (1)[/latex]

[latex]F_{\text{net},y} = 0; \quad T \sin 45^\circ + E \sin 30^\circ - 200 = 0 \quad (2)[/latex]

Solving the system of two equations with two variables results in:

[latex]E = C =\hspace{.2cm} 146.4 \hspace{.2cm} \text N[/latex]

[latex]T = \hspace{.2cm} 179.4 \hspace{.2cm} \text N[/latex]
