SETUP

In Lab 4, we only have 1 new circuit element, the inductor. We will be using an external inductor (similar to how we used with the capacitor) and studying how these inductors behave in the RL circuit. Figure 3 is an image of the inductor you will be working with, along with how it is connected to the circuit modules.

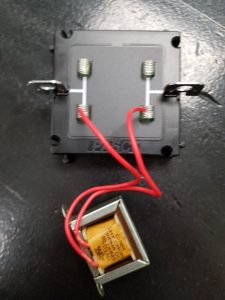

Figure 3: Photo showing the inductor that we are working with in Lab 4. The orientation of the inductor does not matter when attaching it to the coil modules.
