10.1 Genetic Engineering

Biotechnology uses artificial methods to modify the genetic material of living organisms or cells to produce novel compounds or perform new functions. Its roots can be traced back to ancient practices like fermentation for brewing and bread-making. It has also been used to improve livestock and crops since the beginning of agriculture through selective breeding. Modern biotechnology began to take shape in the 20th century with the discovery of DNA’s structure and the development of the basic tools used to manipulate DNA. This era saw the emergence of many different branches of biotechnology, including genetic engineering, stem cell research, and reproductive cloning.

Genetic engineering involves directly altering an organism’s DNA at the molecular level to achieve desired traits or outcomes. It plays a crucial role in medicine, agriculture, environmental science, and industry, offering solutions to the world’s most pressing challenges. By harnessing the power of living organisms, genetic engineering has the potential to improve health outcomes, enhance food security, and promote sustainable practices. The rate of discovery and development of new applications is expected to accelerate, bringing huge benefits to humankind but perhaps also significant risks. Many of these developments are expected to raise significant ethical and social questions that human societies have not yet had to consider.

Genetic engineering encompasses various techniques to manipulate an organism’s genetic material, including recombinant DNA technology and gene editing.

Isolation of Nucleic Acids

In order to manipulate the DNA, it first has to be removed, or extracted, from cells. This usually involves breaking the cell open and using enzymes to eliminate other large molecules. A detergent solution helps break the cells apart. Enzymes are used to stop proteins and RNA from interfering. Finally, alcohol is added to make the DNA come out of the solution, forming a jelly-like substance.

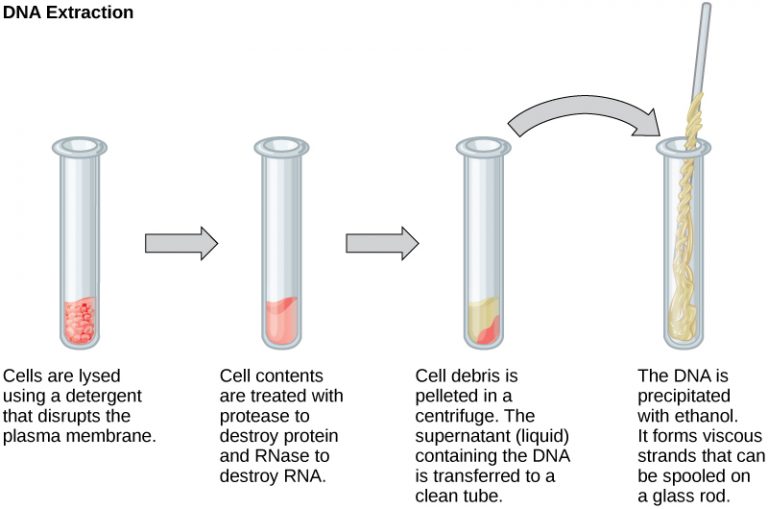

steps in dna extraction. see image description — Figure 10.1.1 This diagram shows the basic method used to extract DNA. Image by OpenStax, CC BY 4.0

Figure 10.1.1 Image Description

This image illustrates the DNA extraction process in four key steps, using labelled diagrams of test tubes:

Cell Lysis: Cells are broken open using a detergent that disrupts the plasma membrane, releasing cellular contents into the solution.

Digestion of Proteins and RNA: The lysate is treated with protease to degrade proteins and RNase to break down RNA, leaving DNA intact.

Separation by Centrifugation: The mixture is centrifuged to pellet (collect) the debris at the bottom. The supernatant, which contains the DNA, is transferred to a new clean tube.

DNA Precipitation: Ethanol is added to the supernatant to precipitate the DNA. The DNA becomes visible as viscous strands that can be spooled on a glass rod.

Recombinant DNA technology

Recombinant DNA technology combines DNA from different sources to create new genetic combinations. A vector, a delivery vehicle for DNA, is used to help transport a specific DNA fragment into a cell for copying or expression. Bacterial cells are often used in this process, and the bacterial plasmid acts as the vector. A plasmid is a small circular DNA molecule found in bacteria that replicates independently of the larger bacterial chromosome. As bacteria divide, they copy their DNA, including the plasmid, which means the inserted DNA fragment is also copied. This process of making multiple identical copies of a specific gene is called gene cloning (or molecular cloning).

process of making recombinant dna from plasmid dna and a gene — Figure 10.1.2 Recombinant DNA is made by combining DNA from different sources. Image by Walter Suza. CC BY-NC-SA 4.0

Gene cloning begins with the use of restriction enzymes, which act as molecular scissors to cut DNA at specific sequences. These enzymes recognize specific DNA sequences and cut them predictably, creating “sticky ends” that can bond with complementary overhangs on DNA cut with the same enzyme.

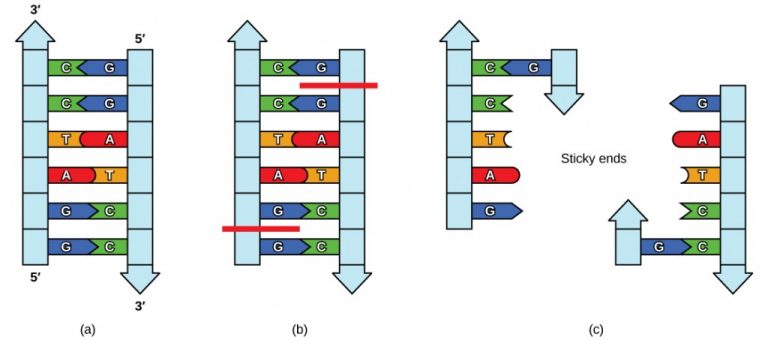

steps in a 6 nucleotide restriction enzyme recognition site — Figure 10.1.3 (a) Six-nucleotide restriction enzyme recognition site, notice that the sequence of six nucleotides reads the same in the 5′ to 3′ direction on one strand as it does in the 5′ to 3′ direction on the complementary strand. This is known as a palindrome. (b) The restriction enzyme breaks the DNA strands, and (c) The cut in the DNA results in “sticky ends.” Another piece of DNA cut on either end by the same restriction enzyme could attach to these sticky ends and be inserted into the gap made by this cut. Image by OpenStax, CC BY 4.0

The sticky ends allow the isolated gene to be inserted into the plasmid. DNA ligase joins them together, forming recombinant plasmids. The recombinant plasmid is added to a host cell and typically then cultured to produce large quantities of the desired gene.

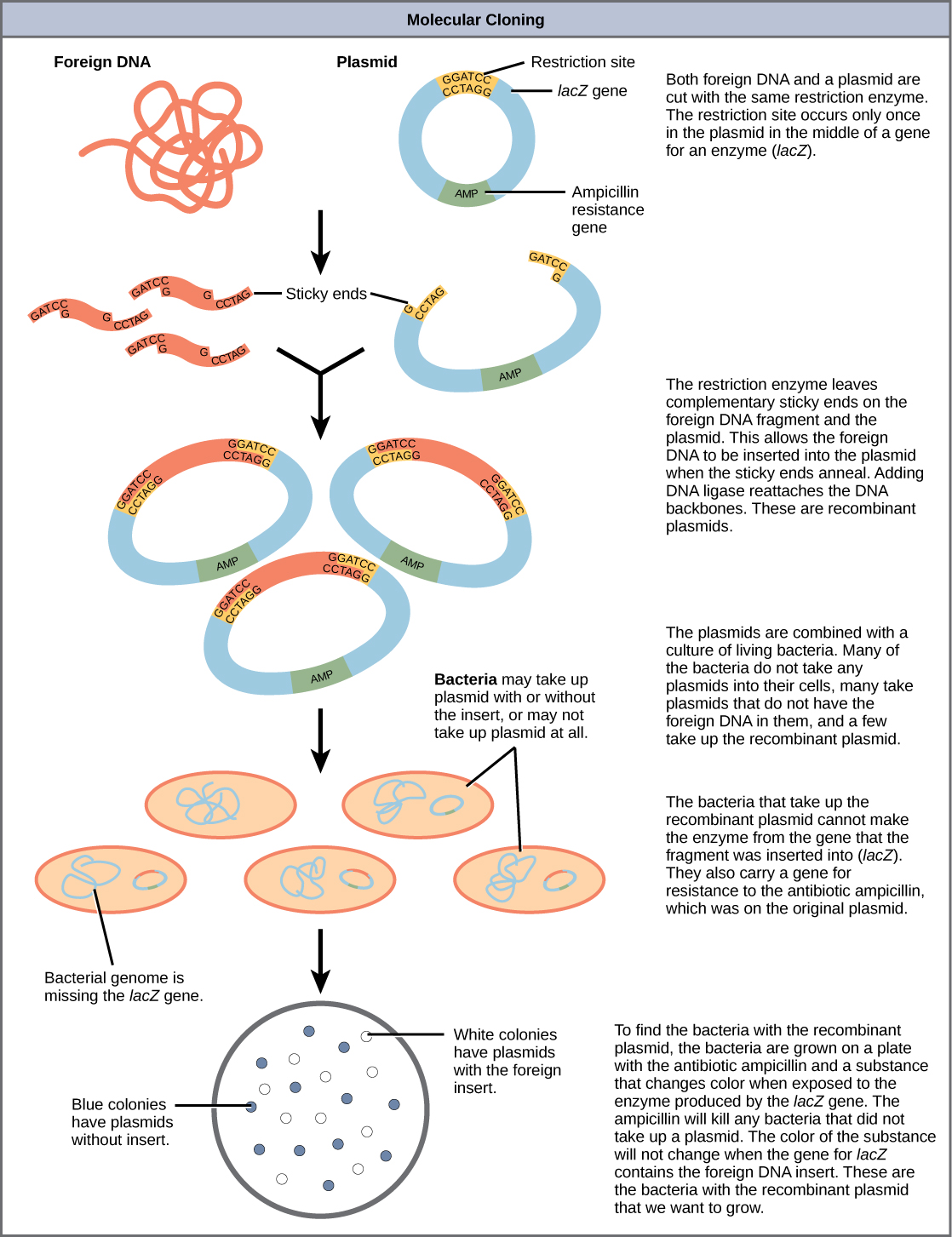

how molecular cloning works. see image description — Figure 10.1.4 This diagram shows the steps involved in molecular cloning. Image by OpenStax, CC BY 4.0

Figure 10.1.4 Image Description

This image illustrates the molecular cloning process using plasmids and bacterial transformation. It breaks the procedure into multiple stages, from cutting DNA to identifying transformed bacteria:
1. DNA Cutting and Preparation:

Foreign DNA and a plasmid are cut using the same restriction enzyme at a specific restriction site (within the lacZ gene).
The plasmid also contains an ampicillin resistance gene (Amp).
Cutting both DNA sources creates complementary sticky ends.

2. DNA Insertion

The foreign DNA is inserted into the plasmid via sticky end pairing.
DNA ligase is used to seal the DNA backbones.
The resulting recombinant plasmids now contain the foreign DNA.

3. Transformation

These plasmids are introduced to a bacterial culture.
Bacteria may:
- Take up plasmids with foreign DNA (recombinant plasmids),
- Take up plasmids without the insert,
- Or not take up any plasmid.

4. Bacterial Selection

Bacteria are plated on media containing ampicillin and a substance that detects activity of the lacZ gene.
Only bacteria with plasmids (containing ampicillin resistance) survive.

5. Screening Colonies

Blue colonies: Bacteria with plasmids without the foreign DNA insert (lacZ is intact and active).
White colonies: Bacteria with recombinant plasmids (lacZ is disrupted by foreign DNA).
These white colonies are the ones that successfully incorporated the foreign gene of interest and are typically selected for further study or application.

Applications of Recombinant DNA Technology

Recombinant DNA technology has many different applications. Some examples include:

Insulin Production

Human genes can be inserted into bacteria so they are able to make human proteins. Proteins the bacteria make are injected into people who cannot produce them because of mutations.
Insulin was the first human protein to be produced in this way. Insulin helps cells take up glucose from the blood. People with type 1 diabetes have a mutation in the gene that usually codes for insulin.

Without insulin, their blood glucose rises to harmfully high levels. At present, the only treatment for type 1 diabetes is the injection of insulin from outside sources. Until recently, there was no known way to make human insulin outside the human body. The problem was solved using recombinant DNA technology. The human insulin gene was cloned and used to transform bacterial cells, which could then produce large quantities of human insulin. Other human proteins, such as Human Growth Hormone and cytokines, have been produced this way.

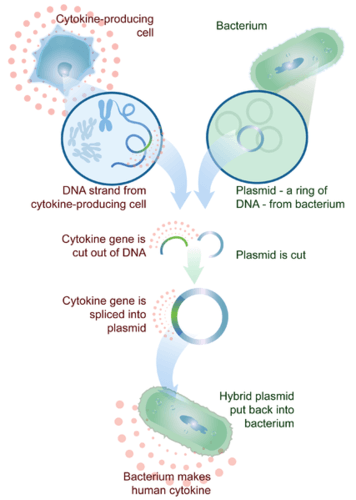

how to make a human cytokine. see image description — Figure 10.1.5 Bacteria can be genetically engineered to produce a human protein, such as a cytokine (small protein that helps fight infections). Image by CK-12 Foundation, CC BY-NC 3.0

Figure 10.1.5 Image Description

This image illustrates the recombinant DNA process used to produce human cytokines using bacteria:
Step-by-Step Description:

Cytokine-Producing Cell:
A human or animal cell that naturally produces cytokines is selected. Its DNA is extracted.
Gene Isolation:
The specific cytokine gene is cut out of the DNA using restriction enzymes.
Plasmid from Bacterium:
A plasmid, which is a small circular piece of DNA from a bacterium, is also cut open.
Recombination:
The cytokine gene is inserted (spliced) into the plasmid, forming a hybrid (recombinant) plasmid.
Transformation:
The recombinant plasmid is inserted back into a bacterium.
Protein Production:
The bacterium now uses the inserted gene to produce human cytokine, which can be harvested for medical use.

This image shows how genetic engineering allows for the mass production of human proteins (like cytokines) in microorganisms—a process commonly used in biotechnology and pharmaceutical industries.

Transgenic Animals

Although several recombinant proteins used in medicine are successfully produced in bacteria, some proteins need a eukaryotic animal host for proper processing. For this reason, genes have been cloned and expressed in animals such as sheep, goats, chickens, and mice. Animals that have been modified to express recombinant DNA are called transgenic animals.

Several human proteins are expressed in the milk of transgenic sheep and goats. In one commercial example, the FDA has approved a blood anticoagulant protein that is produced in the milk of transgenic goats for use in humans. Mice have been used extensively to express and study the effects of recombinant genes and mutations.

2 mice glowing at the ears, eyes, and nose. 1 normal mouse — Figure 10.1.6 shows that two of these mice are transgenic because they have a gene that causes them to fluoresce under UV light. The non-transgenic mouse does not have the gene that causes fluorescence. Image by Ingrid Moen et al., CC BY 4.0

The first transgenic animal was approved for food in Canada in 2016. The AquAdvantage salmon incorporates a growth hormone gene from Chinook salmon into the genome of Atlantic salmon. This results in a salmon which grows faster and reaches market size quicker.

Transgenic Crops

Transgenic crops, also known as genetically modified organisms (GMOs), are modified with new genes that code for traits helpful to humans.

Transgenic crops have been created with a variety of different traits. They can yield more food, taste better, survive drought, tolerate salty soil, and resist insect pests and diseases, among other things. There are hundreds of GM crops approved in Canada. One example is Bt corn, which is a type of GMO that has been engineered to produce protein from the bacterium Bacillus thuringiensis (Bt). This protein is toxic to certain insect pests, particularly caterpillars like the European corn borer. Bt corn helps farmers reduce the need for chemical insecticides. Scientists have even created a transgenic purple tomato that contains high levels of cancer-fighting compounds called antioxidants.

a purple tomato on the vine — Figure 10.1.7 A purple tomato is genetically modified to contain high levels of antioxidants. A gene for the compound was transferred into normal red tomatoes. Image by F Delventhal, CC BY 2.0

Production of Vaccines

A vaccine is a substance that stimulates the immune system to recognize and fight specific pathogens, providing protection against disease.

Traditional vaccines use weakened or inactive microorganisms or viruses to trigger an immune response. Modern vaccines use specific genes from pathogens, which are cloned and mass-produced in bacteria to create large quantities of specific proteins that stimulate the immune system. These proteins are then used as the vaccine.

Traditionally, flu vaccines (aka flu shots) were made by growing the virus in chicken eggs, which was a time-consuming and labour-intensive process. With recombinant DNA technology, flu vaccines can be produced faster and quickly adapted to respond to emerging flu strains.

Gene Therapy

Gene therapy is a recombinant DNA technique that aims to cure certain genetic diseases by introducing a healthy gene into the genome. This process involves replacing a faulty or missing protein caused by a genetic mutation. The healthy gene is typically delivered into diseased cells using a vector, such as a virus (e.g., adenovirus), which can infect the host cell and integrate the foreign DNA into the genome.

While gene therapy has primarily been experimental, several treatments have recently been approved in Canada. For example, Hemgenix is a hemophilia treatment that delivers a functional copy of the gene responsible for producing Factor IX, a protein essential for blood clotting. As technology advances and challenges are addressed, gene therapy holds promise for curing more genetic diseases in the future.

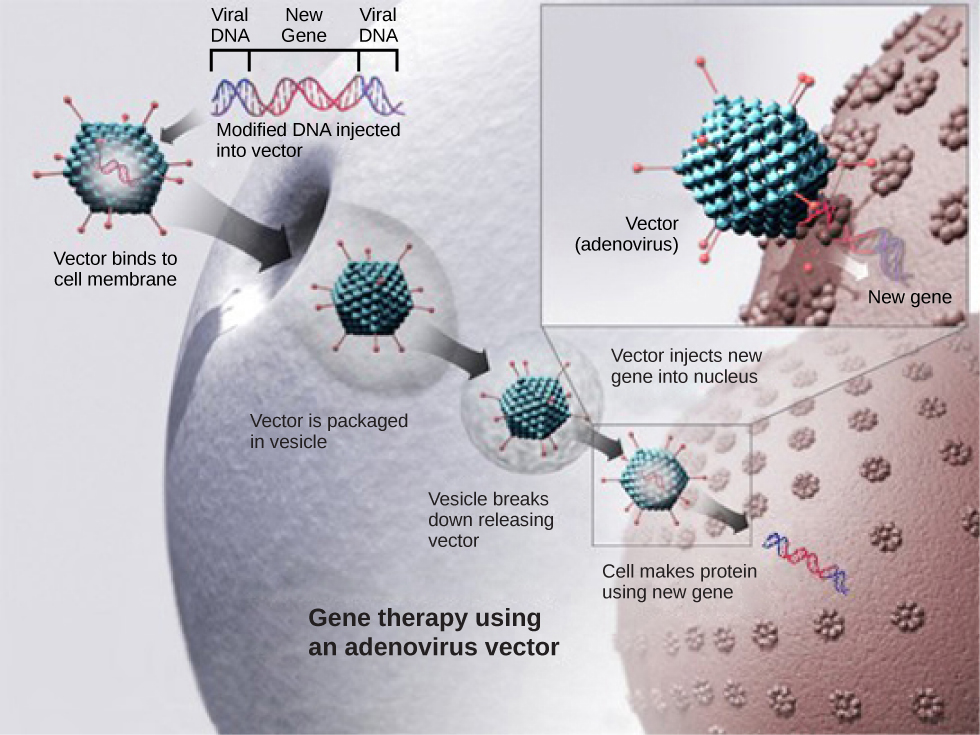

steps in gene therapy. see image description — Figure 10.1.8 This diagram shows the steps involved in curing disease with gene therapy using an adenovirus vector. Image modification of work by NIH, CC BY 4.0

Figure 10.1.8 Image Description

This image illustrates the process of gene therapy using an adenovirus vector, which is a common method for delivering therapeutic genes into human cells.

Step-by-Step Description:

Modified DNA Injected into Vector
A therapeutic gene (new gene) is inserted into the DNA of an adenovirus. The modified viral DNA now carries both viral DNA and the new gene.
Vector Binds to Cell Membrane
The engineered adenovirus (vector) comes into contact with a human cell and binds to its membrane.
Vector is Packaged in a Vesicle
The virus is taken into the cell by endocytosis, forming a vesicle around it.
Vesicle Breaks Down
Inside the cell, the vesicle breaks open, releasing the vector into the cytoplasm.
Vector Injects New Gene into Nucleus
The virus travels to the nucleus and delivers the new gene into the cell’s genome or as an episome (non-integrated DNA).
Protein Production
The cell uses the new gene to produce the corresponding protein, which may help treat a genetic disorder or disease.

Purpose:

Gene therapy using adenovirus vectors is designed to correct or replace faulty genes by delivering functional copies directly into a patient’s cells.

Gene Editing

Gene editing is another technique used in genetic engineering. Gene editing allows for precise changes to a gene directly inside living organisms. Gene editing can be used to add, delete or even substitute bases within the DNA. In contrast, we saw that recombinant DNA technology can only be used to add a gene to an organism.

The most revolutionary tool in gene editing is CRISPR-Cas9. Discovered in 2012 by Jennifer Doudna and Emmanuelle Charpentier, CRISPR-Cas9 has transformed the field by providing a simple, efficient, and accurate method for targeting specific DNA sequences. CRISPR-Cas9 is a natural system found in bacteria which serves as a defence mechanism against viruses called bacteriophages. When a bacteriophage infects a bacterium, the CRISPR system captures snippets of the virus’s DNA and integrates them into the bacterial genome. These snippets are then used to recognize and cut out the DNA of future infections by the same virus, thus providing immunity.

CRISPR-Cas9 involves two main components: the Cas9 enzyme, which acts as molecular scissors to cut DNA, and a guide RNA (gRNA) that is complementary to the specific DNA sequence to be edited. After Cas9 cuts both strands of the target DNA, the cell’s DNA repair enzymes randomly insert or delete nucleotides as they reconnect the DNA. This process can disrupt the gene’s function, effectively “knocking out” the gene.

Scientists can also introduce a normal gene into the cell with the Cas9/gRNA complex to be used as a template to repair the cut DNA. Using a DNA template allows for precise corrections or insertions at the cut site, enabling the repair of genetic mutations or the addition of new genetic material.

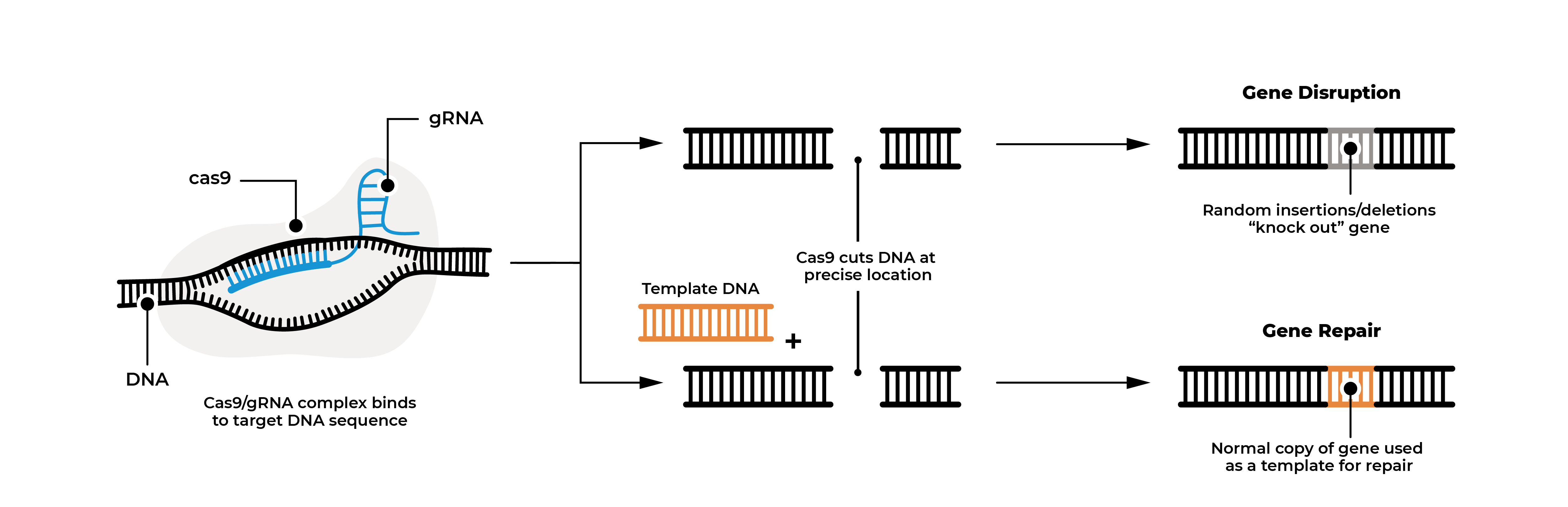

the CRISPR unzipping process — Figure 10.1.9 CRISPR gRNA binds at a target DNA sequence then Cas9 cuts the DNA. This can be done to “knock out” a gene or to use a DNA template to repair a gene. Image modification of work by Ianis G. Matsoukas, CC BY 4.0 Mods: terminology updated, labels clarified, layout refined.

Applications of Gene Editing

CRISPR-Cas9 technology has a wide range of applications across various fields. Many of these applications are still in the research and development stage, but some have been approved.

Medical Applications

Figure 10.1.10 Scientist with a Petri dish. Image by Drew Hays, Unsplash License

CRISPR-Cas9 technology holds immense potential in various medical applications. In gene therapy, CRISPR-Cas9 can be used to cure genetic disorders by precisely editing the mutations in genes. The first CRISPR-Cas9 gene-edited therapy was approved in Canada in 2024 for sickle cell disease and transfusion-dependent beta-thalassemia. It involves editing hematopoietic stem cells (stem cells found in the bone marrow that can develop into all of the different types of blood cells) to correct genetic mutations.

In cancer treatment, CRISPR-Cas9 can target and modify genes involved in cancer progression, potentially leading to more effective and personalized therapies. Researchers are exploring ways to use this technology to disrupt cancer cell growth and enhance the body’s ability to fight cancer.

CRISPR-Cas9 can also be used to develop treatments for viral infections like HIV and hepatitis B. This approach aims to target and remove viral DNA from infected cells, potentially offering a cure for these chronic infections.

Agricultural Applications

Figure 10.1.11 Wheat Field. Image by Melissa Askew, Unsplash License

CRISPR-Cas9 technology is used extensively in agriculture. In crops, CRISPR can modify specific genes to enhance resistance to diseases, pests, and environmental stresses. For example, researchers have developed CRISPR-edited wheat varieties that are more resistant to fungal infections and drought conditions. CRISPR can also be used to improve the nutritional content of crops, such as increasing the levels of essential vitamins and minerals. The Canadian Food Inspection Agency (CFIA) and Health Canada have established guidelines that treat gene-edited crops similarly to traditionally bred varieties. This means that gene-edited crops do not require the same stringent pre-market safety evaluations as genetically modified organisms (GMOs) with foreign DNA. In livestock, CRISPR is being explored to enhance traits like disease resistance, growth rates, and overall productivity.

Environmental Applications

Researchers are exploring many possible environmental applications of CRISPR gene editing. In bioremediation, CRISPR is used to modify the genes of microorganisms that can break down pollutants and toxins in the environment more efficiently. Research is underway to try to modify the genes of certain bacteria to enhance their ability to degrade plastics and help solve the global plastic waste problem.

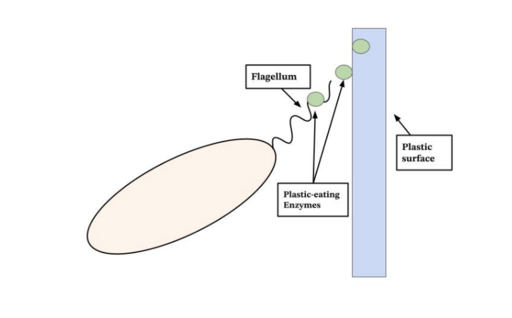

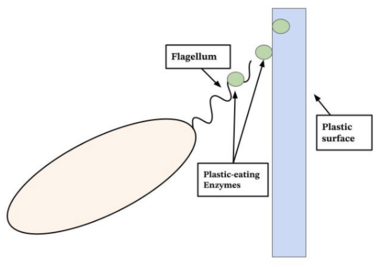

line drawing of bacteria connecting with plastic surface — Figure 10.1.12 The bacteria *Ideonella Sakaiensis* adhering to the PET plastic with its thin flagellum, delivering PET-degrading enzymes to the plastic surface. Image by Jessicaniezwicki, CC BY-SA 4.0

In conservation, CRISPR technology is being explored as a way to help protect endangered species by enhancing their genetic diversity. This can be achieved by introducing specific genetic variants from global populations or even from museum specimens to help improve their resilience to diseases and environmental changes.

One day, CRISPR may be used to tackle invasive species by editing genes responsible for reproduction or survival, helping restore balance in ecosystems.

Potential Application – CRISPR-Cas 9 Gene Drives

A gene drive is a genetic tool designed to spread a specific trait through a population much faster than normal inheritance would allow. Normally, each parent passes on genes to their offspring with a 50% chance for each gene. A gene drive changes this, ensuring the desired gene is passed on almost always. To do so, CRISPR-Cas9 cuts the DNA at a specific site and inserts the desired gene along with the CRISPR machinery. When the organism reproduces, the gene drive is inherited by the offspring, whereas the CRISPR-Cas9 machinery in the gene drive cuts the DNA of the offspring at the same location and inserts the desired gene. This process ensures that nearly all offspring inherit the desired gene, spreading it quickly.

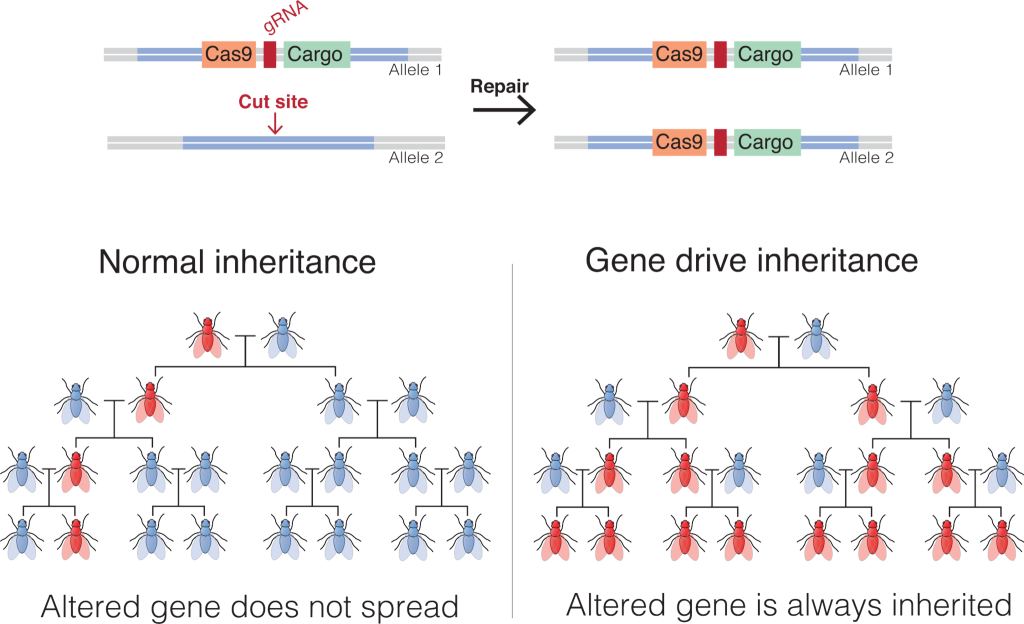

The difference between normal inheritance & gene drive inheritance — Figure 10.1.13 Gene-drive in flies. Image by Mariuswalter, CC BY-SA 4.0

Figure 10.1.13 Image Description

This image explains the concept of gene drive inheritance using the CRISPR-Cas9 system, and compares it to normal inheritance.

Top Section: Mechanism of Gene Drive

Cas9 and gRNA (guide RNA) are inserted into Allele 1 alongside a “Cargo” gene (the desired genetic modification).
Cas9 cuts the corresponding Allele 2 at the target site.
During repair, the cell copies the entire Cas9-Cargo sequence from Allele 1 into Allele 2.
Result: Both alleles now carry the altered gene—this is the gene drive.

Bottom Section: Inheritance Patterns

Normal Inheritance (Left)
Shows how a genetically altered gene may not be passed on to all offspring.
Over generations, the altered gene may disappear.
Conclusion: “Altered gene does not spread.”
Gene Drive Inheritance (Right)
Due to the gene drive, every offspring inherits the altered gene.
The trait rapidly spreads through the population.
Conclusion: “Altered gene is always inherited.”

Currently, gene drives are not being used in the wild but are actively being researched in controlled environments to ensure their safety and efficacy. Gene drives could be used to reduce the spread of vector-borne diseases like malaria, dengue, and Lyme Disease. For example, in the case of malaria, a gene drive can be used to either make the mosquitoes (Anopheles) sterile or make them resistant to the parasite (Plasmodium). Gene drives also have the potential to manage invasive species by reducing their reproductive success and eliminating pesticide resistance in agricultural pests. Gene drives also pose significant risks, like unintended ecological impacts and the difficulty of reversing genetic changes once they have spread.
